Introduction

Although regression models are frequently used in empirical research to study relationships among variables, often the quantity of substantive interest is not one of the coefficients of the model, but rather a quantity derived from the coefficients, such as predicted values or average marginal effects. The usual method for estimating the uncertainty of the derived quantities is an approximation known as the “delta method”. The delta method involves two approximations: 1) that the variance of the derived quantity can be represented as a first-order Taylor series, and 2) that the resulting estimate is normally distributed1.In many cases, especially with nonlinear models, these approximation can fail badly. clarify implements an alternative to the delta method—simulation-based inference—which involves simulating the sampling distributions of the derived quantities.

The methodology clarify relies on is described in King, Tomz, and Wittenberg (2000) and Rainey (2023). Similar functionality exists in the CLARIFY package in Stata (Tomz, Wittenberg, and King 2003)2 and used to be available in the Zelig R package (Imai, King, and Lau 2008), though there are differences in these implementations. clarify provides additional flexibility by allowing the user to request any derived quantity, in addition to providing shortcuts for common quantities, including predictions at representative values, average marginal effects, and average dose-response functions (described below). clarify relies on and can be seen as a companion to the marginaleffects package, which offers similar functionality but primarily uses the delta method for calculating uncertainty.

Using clarify

There are four steps to using clarify:

  1. Fit the model to the data using modeling functions in supported packages

  2. Use sim() to take draws from the sampling distribution of the estimated model coefficients

  3. Use sim_apply() or its wrappers sim_setx(), sim_ame(), and sim_adrf() to compute derived quantities using each simulated set of coefficients

  4. Use summary() and plot() to summarize and visualize the distribution of the derived quantities and perform inference on them

In the sections below, we’ll describe how to implement these steps in detail. First, we’ll load clarify using library().

For a running example, we’ll use the lalonde dataset in the MatchIt package, which contains data on 614 participants enrolled in a job training program or sampled from a survey. The treatment variable is treat and the outcome is re78, and all other variables are confounders. Although the original intent was to estimate the effect of treat on re78, we’ll use it more generally to demonstrate all of clarify’s capabilities. In addition, we’ll use a transformation of the outcome variable to demonstrate applications to nonlinear models.

data("lalonde", package = "MatchIt")

lalonde$re78_0 <- ifelse(lalonde$re78 > 0, 1, 0)

head(lalonde)
#>      treat age educ   race married nodegree re74 re75       re78 re78_0
#> NSW1     1  37   11  black       1        1    0    0  9930.0460      1
#> NSW2     1  22    9 hispan       0        1    0    0  3595.8940      1
#> NSW3     1  30   12  black       0        0    0    0 24909.4500      1
#> NSW4     1  27   11  black       0        1    0    0  7506.1460      1
#> NSW5     1  33    8  black       0        1    0    0   289.7899      1
#> NSW6     1  22    9  black       0        1    0    0  4056.4940      1

1. Fitting the model

The first step is to fit the model. clarify can operate on a large set of models (those supported by marginaleffects), including generalized linear models, multinomial models, multivariate models, and instrumental variable models, many of which are available in other R packages. Even if clarify does not offer direct support for a given model, there are ways to use its functionality regardless (explained in more detail below).

Because we are computing derived quantities, it is not critical to parameterize the model in such a way that the coefficients are interpretable. Below, we’ll fit a probit regression model for the outcome given the treatment and confounders. Coefficients in probit regression do not have a straightforward interpretation, but that’s okay; our quantities of interest can be expressed as derived quantities–functions of the model parameters, such as predictions, counterfactual predictions, and averages and contrasts of them.

fit <- glm(re78_0 ~ treat * married + age + educ + race +
             nodegree + re74 + re75, data = lalonde,
           family = binomial("probit"))

2. Drawing from the coefficient distribution

After fitting the model, we will use sim() to draw coefficients from their sampling distribution. The sampling distribution is assumed to be multivariate normal or multivariate t with appropriate degrees of freedom, with a mean vector equal to the coefficient vector and a covariance matrix equal to the asymptotic covariance matrix extracted from the model. The arguments to sim() are listed below:

sim(fit = , n = , vcov = , coefs = , dist = )
  • fit – the fitted model object, the output of the call to the fitting function (e.g., glm())

  • n – the number of simulated values to draw; by default, 1000. More values will yield more replicable and precise results at the cost of speed.

  • vcov – either the covariance matrix of the estimated coefficients, a function used to extract it from the model (e.g., sandwich::vcovHC() for the robust covariance matrix), or a string or formula giving a code for extracting the covariance matrix (see marginaleffects::get_vcov() for details). If left unspecified, the default covariance matrix will be extracted from the model.

  • coefs – either a vector of coefficients to be sampled or a function to extract them from the fitted model. If left unspecified, the default coefficients will be extracted from the model. Typically this does not need to be specified.

  • dist – the name of the distribution from which to draw the sampled coefficients. Can be "normal" for a normal distribution or t(#) for a t-distribution, where # represents the degrees of freedom. If left unspecified, sim() will decide on which distribution makes sense given the characteristics of the model (the decision is made by insight::get_df() with type = "wald"). Typically this does not need to be specified.

If your model is not supported by clarify, you can omit the fit argument and just specify the vcov and coefs argument, which will draw the coefficients from the distribution named in dist ("normal" by default).

sim() uses a random number generator to draw the sampled coefficients from the sampling distribution, so a seed should be set using set.seed() to ensure results are replicable across sessions.

The output of the call to sim() is a clarify_sim object, which contains the sampled coefficients, the original model fit object if supplied, and the coefficients and covariance matrix used to sample.

set.seed(1234)

# Drawing simulated coefficients using an HC2 robust
# covariance matrix
s <- sim(fit, vcov = "HC2")

s
#> A `clarify_sim` object
#>  - 11 coefficients, 1000 simulated values
#>  - sampled distribution: multivariate normal
#>  - original fitting function call:
#>
#> glm(formula = re78_0 ~ treat * married + age + educ + race +
#>     nodegree + re74 + re75, family = binomial("probit"), data = lalonde)

3. Computing derived quantities

After sampling the coefficients, we will compute derived quantities on each set of sampled coefficients and store the result, which represents a “posterior” distribution of the derived quantity, as well as on the original coefficients, which are used as the final estimates. The core functionality is provided by sim_apply(), which accepts a clarify_sim object from sim() and a function to compute and return one or more derived quantities, then applies that function to each set of simulated coefficients. The arguments to sim_apply() are below:

sim_apply(sim = , FUN = , verbose = , cl = , ...)
  • sim – a clarify_sim object; the output of a call to sim().

  • FUN – a function that takes in either a model fit object or a vector of coefficients and returns one or more derived quantities. The first argument should be named fit to take in a model fit object or coefs to take in coefficients.

  • verbose – whether to display a progress bar.

  • cl – an argument that controls parallel processing, which can be the number of cores to use or a cluster object resulting from parallel::makeCluster().

  • ... - further arguments to FUN.

The FUN argument can be specified in one of two ways: either as a function that takes in a model fit object or a function that takes in a vector of coefficients. The latter will always work but the former only works for supported models. When the function takes in a model fit object, sim_apply() will first insert each set of sampled coefficients into the model fit object and then supply the modified model to FUN.

For example, let’s say our derived quantity of interest is the predicted probability of the outcome for participant PSID1. We would specified our FUN function as follows:

sim_fun1 <- function(fit) {
  predict(fit, newdata = lalonde["PSID1",], type = "response")
}

The fit object supplied to this function will be one in which the coefficients have been set to their values in a draw from their sampling distribution as generated by sim(). We then supply the function to sim_apply() to simulate the sampling distribution of the predicted value of interest:

est1 <- sim_apply(s, FUN = sim_fun1, verbose = FALSE)

est1
#> A `clarify_est` object (from `sim_apply()`)
#>  - 1000 simulated values
#>  - 1 quantity estimated:
#>  PSID1 0.9757211

The resulting clarify_est object contains the simulated estimates in matrix form as well as the estimate computed on the original coefficients. We’ll examine the sampling distribution shortly, but first we’ll demonstrate computing a derived quantity from the coefficients directly.

The race variable is a factor, and the black category is used as the reference level, so it’s not immediately clear whether there is a difference between the coefficients racehispan and racewhite, which represent the non-reference categories hispan and white. To compare these two directly, we can use sim_apply() to compute a derived quantity that corresponds to the difference between them.

sim_fun2 <- function(coefs) {
  hispan <- unname(coefs["racehispan"])
  white <- unname(coefs["racewhite"])

  c("w - h" = white - hispan)
}

est2 <- sim_apply(s, FUN = sim_fun2, verbose = FALSE)

est2
#> A `clarify_est` object (from `sim_apply()`)
#>  - 1000 simulated values
#>  - 1 quantity estimated:
#>  w - h -0.09955915

The function supplied to FUN can be arbitrarily complicated and return as many derived quantities as you want, though the slower each run of FUN is, the longer it will take to simulate the derived quantities. Using parallel processing by supplying an argument to cl can sometimes dramatically speed up evaluation.

There are several functions in clarify that serve as convenience wrappers for sim_apply() to automate some common derived quantities of interest. These include

  • sim_setx() – computing predicted values and first differences at representative or user-specified values of the predictors

  • sim_ame() – computing average adjusted predictions, contrasts of average adjusted predictions, and average marginal effects

  • sim_adrf() – computing average dose-response functions and average marginal effects functions

These are described in their own sections below. In addition, there are functions that have methods for clarify_est objects, including cbind() for combining two clarify_est objects together and transform() for computing quantities that are derived from the already-computed derived quantities. These are also described in their own sections below.

4. Summarize and visualize the simulated distribution

To examine the uncertainty around and perform inference on our estimated quantities, we can use plot() and summary() on the clarify_est object.

plot() displays a density plot of the resulting estimates across the simulations, with markers identifying the point estimate (computed using the original model coefficients as recommended by Rainey (2023)) and, optionally, uncertainty bounds (which function like confidence or credible interval bounds). The arguments to plot() are below:

plot(x = , parm = , ci = , level = , method = , reference =)
  • x – the clarify_est object (the output of a call to sim_apply()).

  • parm – the names or indices of the quantities to be plotted if more than one was estimated in sim_apply(); if unspecified, all will be plotted.

  • ci – whether to display lines at the uncertainty bounds. The default is TRUE to display them.

  • level – if ci is TRUE, the desired two-sided confidence level. The default is .95 so that that the bounds are at the .025 and .975 quantiles when method (see below) is "quantile".

  • method – if ci is TRUE, the method used to compute the bounds. Allowable methods include a Normal approximation ("wald") or using the quantiles of the resulting distribution ("quantile"). The Normal approximation involves multiplying the standard deviation of the estimates (i.e., which functions like the standard error of the sampling distribution) by the critical Z-statistic computed using (1-level)/2 to create a symmetric margin of error around the point estimate. The default is "quantile" to instead use quantile-based bounds, which are more appropriate when the distribution is non-Normal. However, quantile-based bounds may require more simulations to stabilize.

  • reference – whether to display a normal density over the plot for each estimate. The default is FALSE to omit them.

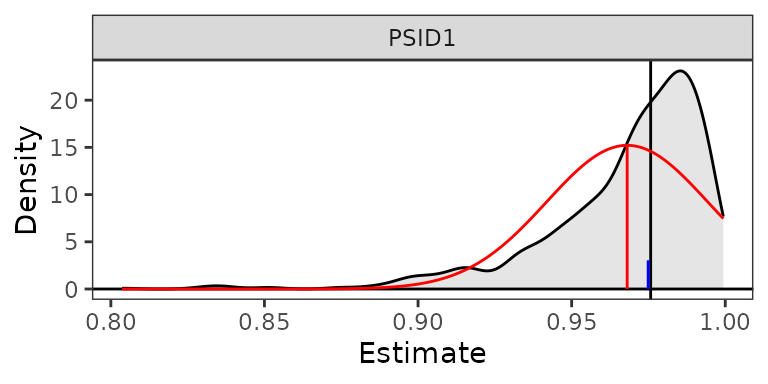

Below, we plot the first estimate we computed above, the predicted probability for participant PSID1:

plot(est1, reference = TRUE, ci = FALSE)

From the plot, we can see that the distribution of simulated values is non-Normal, asymmetrical, and not centered around the estimate, with no values falling below 0 because the outcome is a predicted probability. Given its non-Normality, the quantile-based bounds are clearly more appropriate, as the bounds computed from the Normal approximation would be outside the bounds of the estimate. The plot itself is a ggplot object that can be modified using ggplot2 syntax.

We can use summary() to display the value of the point estimate, the uncertainty bounds, and other statistics that describe the distribution of estimates. The arguments to summary() are below:

summary(object = , parm = , level = , method = , null = )
  • object – the clarify_est object (the output of a call to sim_apply()).

  • parm – the names or indices of the quantities to be displayed if more than one was estimated in sim_apply(); if unspecified, all will be displayed.

  • level – the desired two-sided confidence level. The default is .95 so that that the bounds are at the .025 and .975 quantiles when method (see below) is "quantile".

  • method – the method used to compute the uncertainty bounds. Allowable methods include a Normal approximation ("wald") or using the quantiles of the resulting distribution ("quantile"). See plot() above.

  • null – an optional argument specifying the null value in a hypothesis test for the estimates. If specified, a p-value will be computed using either a standard Z-test (if method is "quantile") or an inversion of the uncertainty interval. The default is not to display any p-values.

Inverting the uncertainty interval involves finding the smallest confidence level such that the null value is within the confidence bounds. The p-value for the test is one minus this level. It is only valid as a p-value when the simulated distribution of the estimates differs from its true sampling distribution under the null value by a location shift (which can be violated when the distribution of the estimates is asymmetric). However, because the p-values are invariant to monotonic transformations of the estimates and null value, as long as the distribution of some monotonic transformation of the estimate is a location shift from its sampling distribution under the null hypothesis, the p-values will be valid.

We’ll use summary() with the default arguments on our first clarify_est object to view the point estimate and quantile-based uncertainty bounds.

summary(est1)
#>       Estimate 2.5 % 97.5 %
#> PSID1    0.976 0.890  0.996

Our second estimated quantity, the difference between two regression coefficients, is closer to Normally distributed, as the plot below demonstrates (and would be expected theoretically), so we’ll use the Normal approximation to test the hypothesis that difference differs from 0.

plot(est2, reference = TRUE, ci = FALSE)


summary(est2, method = "wald", null = 0)
#>       Estimate   2.5 %  97.5 % Std. Error Z value P-value
#> w - h  -0.0996 -0.5352  0.3361     0.2223   -0.45    0.65

The uncertainty intervals and p-values in the summary() output are computed using the Normal approximation because we set method = "wald", and the p-value for the test that our estimate is equal to 0 is returned because we set null = 0. The computed bounds are very close to the quantile-based bound (displayed in the plot, and can be requested in summary() by setting method = "quantile") because the simulated sampling distribution is close to Normal. Note that the Normal approximation should be used only when the simulated sampling distribution is both close to Normally distributed and centered around the estimate (i.e., when the mean of the simulated values [red vertical line] coincides with the estimate computed on the original coefficients [black vertical line]).

sim_apply() wrappers: sim_setx(), sim_ame(), sim_adrf()

sim_apply() can be used to compute the simulated sampling distribution for any arbitrary derived quantity of interest, but there are some quantities that are common in applied research and may otherwise be somewhat challenging to program on their own, so clarify provides shortcut functions to make computing these quantities simple. These functions include sim_setx(), sim_ame(), and sim_adrf(). Each of these can only be used when regression models compatible with clarify are supplied to the original call to sim().

Like sim_apply(), each of these functions is named sim_*(), which signifies that they are to be used on an object produced by sim() (i.e., a clarify_sim object). (Multiple calls to these functions can be applied to the same clarify_sim object and combined; see the cbind() section below.) These functions are described below.

sim_setx(): predictions at representative values

sim_setx() provides an interface to compute predictions at representative and user-supplied values of the predictors. For example, we might want to know what the effect of treatment is for a “typical” individual, which corresponds to the contrast between two model-based predictions (i.e., one under treatment and one under control for a unit with “typical” covariate values). This functionality mirrors the setx() and setx1() functionality of Zelig (which is where its name originates) and provides similar functionality to functions in modelbased, emmeans, effects, and ggeffects.

For each predictor, the user can specify whether they want predictions at specific values or at “typical” values, which are defined in clarify as the mode for unordered categorical and binary variables, the median for ordered categorical variables, and the mean for continuous variables. Predictions for multiple predictor combinations can be requested by specifying values that will be used to create a grid of predictor values, or the grid itself can be supplied as a data frame of desired predictor profiles. In addition, the “first difference”, defined here as the difference between predictions for two predictor combinations, can be computed.

The arguments to sim_setx() are as follows:

sim_setx(sim = , x = , x1 = , outcome = , type = , verbose = , cl = )
  • sim – a clarify_sim object; the output of a call to sim().

  • x – a named list containing the requested values of the predictors, e.g., list(v1 = 1:4, v2 = "A"), or a data frame containing the desired profiles. Any predictors not included will be set at their “typical” value as defined above.

  • x1 – an optional named list or data frame similar to x except with the value of one predictor changed. When specified, the first difference is computed between the covariate combination defined in x (and only one combination is allowed when x1 is specified) and the covariate combination defined in x1.

  • outcome – a string containing the name of the outcome of interest when a multivariate (multiple outcome) model is supplied to sim() or the outcome category of interest when a multinomial model is supplied to sim(). For univariate (single outcome) and binary outcomes, this is ignored.

  • type – a string containing the type of predicted value to return. In most cases, this can be left unspecified to request predictions on the scale of the outcome.

  • verbose – whether to display a progress bar.

  • cl – an argument that controls parallel processing, which can be the number of cores to use or a cluster object resulting from parallel::makeCluster().

Here, we’ll use sim_setx() to examine predicted values of the outcome for control and treated units, at re75 set to 0 and 20000, and race set to “black”.

est3 <- sim_setx(s,
                 x = list(treat = 0:1,
                          re75 = c(0, 20000),
                          race = "black"),
                 verbose = FALSE)

When we use summary() on the resulting output, we can see the estimates and their uncertainty intervals (calculated using quantiles by default).

summary(est3)
#>                         Estimate 2.5 % 97.5 %
#> treat = 0, re75 = 0        0.667 0.558  0.772
#> treat = 1, re75 = 0        0.712 0.617  0.790
#> treat = 0, re75 = 20000    0.938 0.700  0.994
#> treat = 1, re75 = 20000    0.953 0.747  0.996

To see the complete grid of the predictor values used in the predictions, which helps to identify the “typical” values of the other predictors, we can access the "setx" attribute of the object:

attr(est3, "setx")
#>                         treat married      age     educ  race nodegree     re74
#> treat = 0, re75 = 0         0       0 27.36319 10.26873 black        1 4557.547
#> treat = 1, re75 = 0         1       0 27.36319 10.26873 black        1 4557.547
#> treat = 0, re75 = 20000     0       0 27.36319 10.26873 black        1 4557.547
#> treat = 1, re75 = 20000     1       0 27.36319 10.26873 black        1 4557.547
#>                          re75
#> treat = 0, re75 = 0         0
#> treat = 1, re75 = 0         0
#> treat = 0, re75 = 20000 20000
#> treat = 1, re75 = 20000 20000

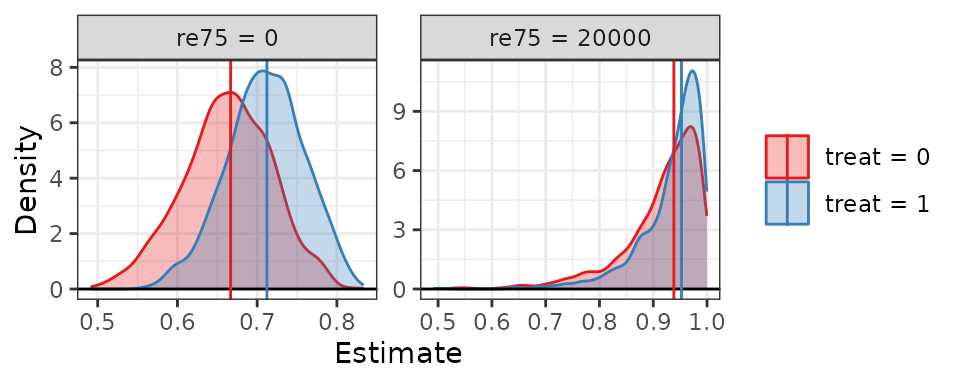

We can plot the distributions of the simulated values using plot(), which also separates the predictions by the predictor values (it’s often clearer without the uncertainty bounds). The var argument controls which variable is used for faceting the plots.

plot(est3, var = "re75", ci = FALSE)

We can see again how a delta method or Normal approximation may not have yielded valid uncertainty intervals given the non-Normality of the distributions.

If a continuous variable with many levels is included in the grid of the predictors, something like a dose-response function for a typical unit can be generated. Below, we set re75 to vary from 0 to 20000 in steps of 2000.

est4 <- sim_setx(s,
                 x = list(treat = 0:1,
                          re75 = seq(0, 20000, by = 2000),
                          race = "black"),
                 verbose = FALSE)

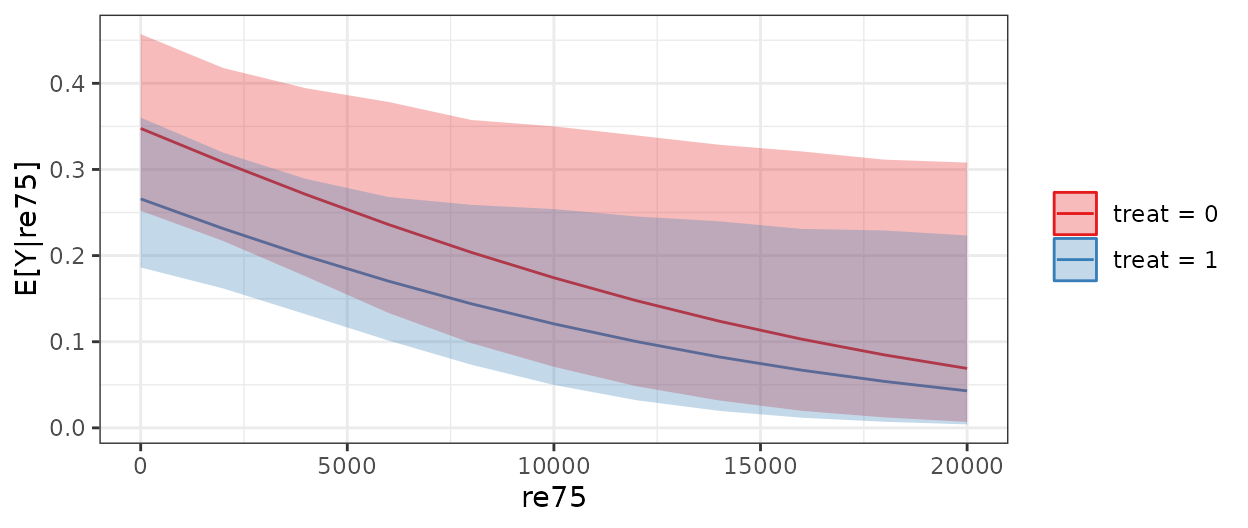

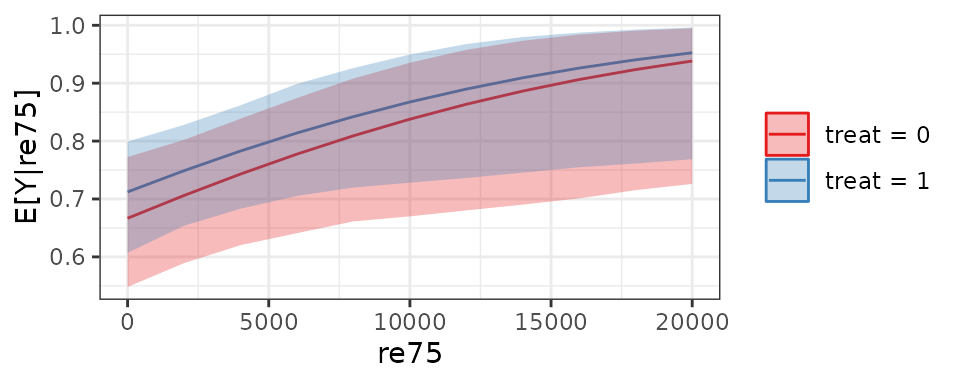

When we plot the output, we can see how the predictions varies across the levels of re75:

plot(est4)

We’ll return to display average dose-response functions using sim_adrf() later.

Finally, we can use sim_setx() to compute first differences, the contrast between two covariate combinations. We supply one covariate profile to x and another to x1, and sim_setx() simulates the two predicted values and their difference. Below, we simulate first difference for a treated and control unit who have re75 of 0 and typical values of all other covariates:

est5 <- sim_setx(s,
                 x = list(treat = 0, re75 = 0),
                 x1 = list(treat = 1, re75 = 0),
                 verbose = FALSE)

When we use summary(), we see the estimates for the predicted values and their first difference (“FD”):

summary(est5)
#>           Estimate   2.5 %  97.5 %
#> treat = 0   0.7856  0.7039  0.8558
#> treat = 1   0.8213  0.7111  0.8995
#> FD          0.0357 -0.0598  0.1188

It is possible to compute first differences without using x1 using transform(), which we describe later.

sim_ame(): average adjusted predictions and average marginal effects

Using predicted values and effects at representative values is one way to summarize regression models, but another way is to compute average adjusted predictions (AAPs) and average marginal effects (AMEs). The definitions for these terms may vary and the names for these concepts differ across sources, but here we define AAPs as the average of the predicted values for all units after setting one predictor to a chosen value, and we define AMEs for binary predictors as the contrast of two AAPs and for continuous predictors as the average of instantaneous rate of change in the AAP corresponding to a small change in the predictor from its observed values across all units3.

The arguments to sim_ame() are as follows:

sim_ame(sim = , var = , subset = , by = , contrast = , outcome = ,
        type = , eps = , verbose = , cl = )
  • sim – a clarify_sim object; the output of a call to sim().

  • var – the name of focal variable over which to compute the AAPs or AMEs, or a list containing the values for which AAPs should be computed.

  • subset – a logical vector, evaluated in the original dataset used to fit the model, defining a subset of units for which the AAPs or AMEs are to be computed.

  • by – the name of one or more variables for which AAPs should be computed within subgroups. Can be supplied as a character vector of variable names or a one-sided formula.

  • contrast – the name of an effect measure used to contrast AAPs. For continuous outcomes, "diff" requests the difference in means, but others are available for binary outcomes, including "rr" for the risk ratio, "or" for the odds ratio, and "nnt" for the number needed to treat, among others. If not specified, only AAPs will be computed if the variable named in var is binary. Ignored when the variable named in var is continuous because the AME is the only quantity computed. When var names a multi-category categorical variable, contrast cannot be used; see the section describing transfom() for computing contrasts with them.

  • outcome – a string containing the name of the outcome of interest when a multivariate (multiple outcome) model is supplied to sim() or the outcome category of interest when a multinomial model is supplied to sim(). For univariate (single outcome) and binary outcomes, this is ignored.

  • type – a string containing the type of predicted value to return. In most cases, this can be left unspecified to request predictions on the scale of the outcome.

  • eps – the value by which the observed values of the variable named in var are changed when it is continuous to compute the AME. This usually does not need to be specified.

  • verbose – whether to display a progress bar.

  • cl – an argument that controls parallel processing, which can be the number of cores to use or a cluster object resulting from parallel::makeCluster().

Here, we’ll use sim_ame() to compute the AME of treat just among those who were treated (in causal inference, this is known as the average treatment effect in the treated, or ATT). We’ll request our estimate to be on the risk ratio scale.

est6 <- sim_ame(s,
                var = "treat", subset = treat == 1,
                contrast = "RR", verbose = FALSE)

We can use summary() to display the estimates and their uncertainty intervals. Here, we’ll also use null to include a test for the null hypothesis that the risk ratio is equal to 1.

summary(est6, null = c(`RR` = 1))
#>         Estimate 2.5 % 97.5 % P-value
#> E[Y(0)]    0.687 0.608  0.760       .
#> E[Y(1)]    0.755 0.685  0.809       .
#> RR         1.100 0.949  1.255    0.21

Here we see the estimates for the AAPs, E[Y(0)] for the expected value of the outcome setting treat to 0 and E[Y(1)] for the expected value of the outcome setting treat to 1, and the risk ratio RR. The p-value on the test for the risk ratio aligns with the uncertainty interval containing 1.

If we instead wanted the risk difference or odds ratio, we would not have to re-compute the AAPs. Instead, we can use transform() to compute a new derived quantity from the computed AAPs. The section on transform() demonstrates this.

We can compute the AME for a continuous predictor. Here, we’ll consider age (just for demonstration; this analysis does not have a valid interpretation).

est7 <- sim_ame(s, var = "age", verbose = FALSE)

We can use summary() to display the AME estimate and its uncertainty interval.

summary(est7)
#>              Estimate    2.5 %   97.5 %
#> E[dY/d(age)] -0.00605 -0.00940 -0.00259

The AME is named E[dY/d(age)], which signifies that a derivative has been computed (more precisely, the average of the unit-specific derivatives). This estimate can be interpreted like a slope in a linear regression model, but as a single summary of the effect of a predictor it is too coarse to capture nonlinear relationships. The section below explains how to compute average dose-response functions for continuous predictors, which provide a more complete picture of their effects on an outcome.

Below, we’ll examine effect modification using the by argument to estimate AAPs and their ratio within levels of the predictor married:

est6b <- sim_ame(s,
                 var = "treat", by = ~married,
                 contrast = "RR", verbose = FALSE)

est6b
#> A `clarify_est` object (from `sim_ame()`)
#>  - Average adjusted predictions for `treat`
#>    - within levels of `married`
#>  - 1000 simulated values
#>  - 6 quantities estimated:
#>  E[Y(0)|0] 0.7399210
#>  E[Y(1)|0] 0.7780330
#>  RR[0]     1.0515082
#>  E[Y(0)|1] 0.7550965
#>  E[Y(1)|1] 0.9013082
#>  RR[1]     1.1936331

The presence of effect modification can be tested by testing the contrast between the effects computed within each level of the by variable; this demonstrated in the section on transform() below.

sim_adrf(): average dose-response functions

A dose-response function for an individual is the relationship between the set value of a continuous focal predictor and the expected outcome. The average dose-response function (ADRF) is the average of the dose-response functions across all units. Essentially, it is a function that relates the value of the predictor to the corresponding AAP of the outcome, the average value of the outcome were all units to be set to that level of the predictor. ADRFs can be used to provide additional detail about the effect of a continuous predictor beyond a single AME.

A related quantity is the average marginal effect function (AMEF), which describes the relationship between a continuous focal predictor and the AME at that level of the predictor. That is, rather than describing how the outcome changes as a function of the predictor, it describes how the effect of the predictor on the outcome changes as a function of the predictor. It is essentially the derivative of the ADRF and can be used to identify at which points along the ADRF the predictor has an effect.

The ADRF and AMEF can be computed using sim_adrf(). The arguments are below:

sim_adrf(sim = , var = , subset = , contrast = , at = ,
         n = , outcome = , type = , eps = , verbose = ,
         cl = )
  • sim – a clarify_sim object; the output of a call to sim().

  • var – the name of focal variable over which to compute the ADRF or AMEF.

  • subset – a logical vector, evaluated in the original dataset used to fit the model, defining a subset of units for which the ARDF or AMEF is to be computed.

  • by – the name of one or more variables for which the ADRF or AMEF should be computed within subgroups. Can be supplied as a character vector of variable names or a one-sided formula.

  • contrast – either "adrf" or "amef" to request the ADRF or AMEF, respectively. The default is to compute the ADRF.

  • at – the values of the focal predictor at which to compute the ADRF or AMEF. This should be a vector of values that the focal predictor can take on. If unspecified, a vector of n (see below) equally-spaced values from the minimum to the maximum value of the predictor will be used. This should typically be used only if quantities are desired over a subset of the values of the focal predictor.

  • n – if at is unspecified, the number of points along the range of the focal predictor at which to compute the ADRF or AMEF. More yields smoother functions, but will take longer and require more memory. The default is 21.

  • outcome – a string containing the name of the outcome of interest when a multivariate (multiple outcome) model is supplied to sim() or the outcome category of interest when a multinomial model is supplied to sim(). For univariate (single outcome) and binary outcomes, this is ignored.

  • type – a string containing the type of predicted value to return. In most cases, this can be left unspecified to request predictions on the scale of the outcome.

  • eps – the value by which the observed values of the variable named in var are changed when it is continuous to compute the AMEF. This usually does not need to be specified.

  • verbose – whether to display a progress bar.

  • cl – an argument that controls parallel processing, which can be the number of cores to use or a cluster object resulting from parallel::makeCluster().

Here, we’ll consider age (just for demonstration; this analysis does not have a valid interpretation) and compute the ADRF and AMEF of age on the outcome. We’ll only examine ages between 18 and 50, even though the range of age goes slightly beyond these values. First, we’ll compute the ADRF of age, which examines how the outcome would vary on average if one set all unit’s value of age to each value between 18 and 50 (here we only use even ages to speed up computation).

age_seq <- seq(18, 50, by = 2)

est8 <- sim_adrf(s, var = "age", contrast = "adrf",
                 at = age_seq, verbose = FALSE)

We can plot the ADRF using plot().

plot(est8)

From the plot, we can see that as age increases, the expected outcome also increases.

We can also examine the AAPs at the requested ages using summary(), which will display all the estimated AAPs by default, so we will request just the first 4 (ages 18 to 24):

summary(est8, parm = 1:4)
#>          Estimate 2.5 % 97.5 %
#> E[Y(18)]    0.821 0.771  0.858
#> E[Y(20)]    0.811 0.764  0.845
#> E[Y(22)]    0.800 0.757  0.832
#> E[Y(24)]    0.788 0.749  0.817

Next we’ll compute the AMEF, the effect of age at each level of age.

est9 <- sim_adrf(s, var = "age", contrast = "amef",
                 at = age_seq, verbose = FALSE)

We can plot the AMEF using plot():

plot(est9)

From the plot, we can see the AME of age increases slightly but is mostly constant across values of age, and the uncertainty intervals for the AMEs consistently exclude 0.

Transforming and combining estimates

Often, our quantities of interest are not just the outputs of the functions above, but comparisons between them. For example, to test for moderation of a treatment effect, we may want to compare AMEs in multiple groups defined by the moderator. Or, it might be that we are interested in an effect described using a different effect measure than the one originally produced; for example, we may decide we want the risk difference AME after computing the risk ratio AME. The functions transform() and cbind() allow users to transform quantities in a single clarify_est object and combine two clarify_est objects. These are essential for computing quantities that themselves are derived from the derived quantities computed by the sim_*() functions.

transform()

transform() is a generic function in R that is typically used to create a new variable in a data frame that is a function of other columns. For example, to compute the binary outcome we used in our model, we could have run the following:

lalonde <- transform(lalonde,
                     re78_0 = ifelse(re78 == 0, 1, 0))

(Users familiar with the tidyverse will note the similarities between transform() and dplyr::mutate(); only transform() can be used with clarify_est objects.)

Similarly, to compute a derived or transformed quantity from a clarify_est object, we can use transform(). Here, we’ll compute the risk difference AME of treat; previously, we used sim_ame() to compute the AAPs and the risk ratio.

est6 <- transform(est6,
                  RD = `E[Y(1)]` - `E[Y(0)]`)

Note that we used tics (`) around the names of the AAPs; this is necessary when they contain special characters like parentheses or brackets.

When we run summary() on the output, the new quantity, which we named “RD”, will be displayed along with the other estimates. We’ll also set a null value for this quantity.

summary(est6, null = c(`RR` = 1, `RD` = 0))
#>         Estimate   2.5 %  97.5 % P-value
#> E[Y(0)]   0.6866  0.6081  0.7596       .
#> E[Y(1)]   0.7551  0.6850  0.8088       .
#> RR        1.0998  0.9485  1.2554    0.21
#> RD        0.0685 -0.0382  0.1580    0.21

One nice thing about using simulation-based inference with p-values computed from inverting the confidence intervals is that the p-values for the risk difference and risk ratio (and any other effect measure for comparing a pair of values) will always exactly align, thereby ensuring inference does not depend on the effect measure used.

The same value would be computed if we were to have called sim_ame() on the same clarify_sim object and requested the risk difference using contrast = "diff"; using transform() saves time because the AAPs are already computed and stored in the clarify_est object.

We can use transform() along with the by variable in sim_ame() to compute the contrast between quantities computed within each subgroup of married.

est6b |>
  transform(RR_ratio = `RR[1]` / `RR[0]`) |>
  summary(parm = c("RR[0]", "RR[1]", "RR_ratio"),
          null = 1)
#>          Estimate 2.5 % 97.5 % P-value
#> RR[0]       1.052 0.919  1.189   0.434
#> RR[1]       1.194 0.950  1.342   0.094 .
#> RR_ratio    1.135 0.921  1.346   0.212
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

RR_ratio contains the ratio of the risk ratios for married = 1 and married = 0. Here we also include a test for whether each of the risk ratios and their ratio differ from 1.

cbind()

cbind() is another generic R function that is typically used to combine two or more datasets columnwise (i.e., to widen a dataset). In clarify, cbind() can be used to combine two clarify_est objects so that the estimates can be examined jointly and so that it is possible to compare them directly. For example, let’s say we computed AMEs in two subgroups using subsetand wanted to compare them. To do so, we call sim_ame() twice, one for each subset (though in practice it is more effective to use by; this is just for illustration):

# AME of treat with race = "black"
est10b <- sim_ame(s, var = "treat", subset = race == "black",
                  contrast = "diff", verbose = FALSE)
summary(est10b)
#>         Estimate   2.5 %  97.5 %
#> E[Y(0)]   0.6677  0.5813  0.7529
#> E[Y(1)]   0.7439  0.6661  0.8016
#> Diff      0.0762 -0.0359  0.1700

# AME of treat with race = "hispan"
est10h <- sim_ame(s, var = "treat", subset = race == "hispan",
                  contrast = "diff", verbose = FALSE)
summary(est10h)
#>         Estimate   2.5 %  97.5 %
#> E[Y(0)]   0.8266  0.7146  0.8990
#> E[Y(1)]   0.8971  0.7888  0.9527
#> Diff      0.0704 -0.0223  0.1387

Here, we computed the risk difference for the subgroups race = "black" and race = "hispan". If we wanted to compare the risk differences, we could combine them and compute a new quantity equal to their difference. We’ll do that below.

First, we need to rename to quantities in each object so they don’t overlap; we can do so using names(), which has a special method for clarify_est objects.

names(est10b) <- paste(names(est10b), "b", sep = "_")
names(est10h) <- paste(names(est10h), "h", sep = "_")

Next, we use cbind() to bind the objects together.

est10 <- cbind(est10b, est10h)
summary(est10)
#>           Estimate   2.5 %  97.5 %
#> E[Y(0)]_b   0.6677  0.5813  0.7529
#> E[Y(1)]_b   0.7439  0.6661  0.8016
#> Diff_b      0.0762 -0.0359  0.1700
#> E[Y(0)]_h   0.8266  0.7146  0.8990
#> E[Y(1)]_h   0.8971  0.7888  0.9527
#> Diff_h      0.0704 -0.0223  0.1387

Finally, we can use transform() to compute the difference between the risk differences:

est10 <- transform(est10,
                   `Dh - Db` = Diff_h - Diff_b)
summary(est10, parm = "Dh - Db")
#>         Estimate    2.5 %   97.5 %
#> Dh - Db -0.00575 -0.06833  0.04103

Importantly, cbind() can only be used to join together clarify_est objects computed using the same simulated coefficients (i.e., resulting from the same call to sim()). This preserves the covariance among the estimated quantities, which is critical for valid inference. That is, sim() should only be called once per model, and all derived quantities should be computed using its output.

Using clarify with multiply imputed data

Simulation-based inference in multiply imputed data is relatively straightforward. Simulated coefficients are drawn from the model estimated in each imputed dataset separately, and then the simulated coefficients are pooled into a single set of simulated coefficients. In Bayesian terms, this would be considered “mixing draws” and is the recommended approach for Bayesian analysis with multiply imputed data (Zhou and Reiter 2010).

Using clarify with multiply imputed data is simple. Rather than using sim(), we use the function misim(). misim() functions just like sim() except that it takes in a list of model fits (i.e., containing a model fit to each imputed dataset) or an object containing such a list (e.g., a mira object from mice::with() or a mimira object from MatchThem::with()). misim() simulates coefficient distributions within each imputed dataset and then appends them together to a form a single combined set of coefficient draws.

sim_apply() and its wrappers accept the output of misim() and compute the desired quantity using each set of coefficients. When these function rely on using a dataset (e.g., sim_ame(), which averages predicted outcomes across all units in the dataset used to fit the model), they automatically know to associate a given coefficient draw with the imputed dataset that was used to fit the model that produced that draw. In user-written functions supplied to the FUN argument of sim_apply(), it is important to correctly extract the dataset from the model fit. This is demonstrated below.

The final estimates of the quantity of interest is computed as the mean of the estimates computed in each imputed dataset (i.e., using the original coefficients, not the simulated ones), which is the same quantity that would be computed using standard pooling rules. This is not always valid for noncollapsible estimates, like ratios, and so care should be taken to ensure the mean of the resulting estimates has a valid interpretation (this is related to the transformation-induced bias described by Rainey (2017)).

The arguments to misim() are as follows:

misim(fitlist = , n = , vcov = , coefs = , dist = )
  • fitlist – a list of model fits or an accepted object containing them (e.g., a mira object from mice::with())

  • n – the number of simulations to run for each imputed dataset. The default is 1000, but fewer can be used because the total number of simulated quantities will be m * n, where m is the number of imputed datasets.

  • vcov, coefs, dist – the same as with sim(), except that a list of such arguments can be supplied to be applied to each imputed dataset.

Below we illustrate using misim() and sim_apply() with multiply imputed data. We’ll use the africa dataset from the Amelia package.

library(Amelia)
#> Loading required package: Rcpp
#> ##
#> ## Amelia II: Multiple Imputation
#> ## (Version 1.8.2, built: 2024-04-10)
#> ## Copyright (C) 2005-2024 James Honaker, Gary King and Matthew Blackwell
#> ## Refer to http://gking.harvard.edu/amelia/ for more information
#> ##
data("africa", package = "Amelia")

# Multiple imputation
a.out <- amelia(x = africa, m = 10, cs = "country",
                ts = "year", logs = "gdp_pc", p2s = 0)

# Fit model to each dataset
model.list <- with(a.out, lm(gdp_pc ~ infl * trade))

# Simulate coefficients
si <- misim(model.list, n = 200)

si
#> A `clarify_misim` object
#>  - 4 coefficients, 10 imputations with 200 simulated values each
#>  - sampled distributions: multivariate t(116)

The function we’ll be applying to each imputed dataset will be one that computes the average marginal effect of infl. (We’ll run the same analysis afterward using sim_ame().)

sim_fun <- function(fit) {
  #Extract the original dataset using get_predictors()
  X <- insight::get_predictors(fit)

  p0 <- predict(fit, newdata = X)

  #Perturb infl slightly
  p1 <- predict(fit, newdata = transform(X, infl = infl + 1e-5))

 c(AME = mean((p1 - p0) / 1e-5))
}

est_mi <- sim_apply(si, FUN = sim_fun, verbose = FALSE)

summary(est_mi)
#>     Estimate 2.5 % 97.5 %
#> AME    -5.75 -8.92  -2.27

Note that sim_apply() “knows” which imputation produced each set of simulated coefficients, so using insight::get_predictors() on the fit supplied to sim_fun() will use the right dataset. Care should be taken when analyses restrict each imputed dataset in a different way (e.g. when matching with a caliper in each one), as the resulting imputations may not refer to a specific target population and mixing the draws may be invalid.

Below, we can use sim_ame():

est_mi2 <- sim_ame(si, var = "infl", verbose = FALSE)

summary(est_mi2)
#>               Estimate 2.5 % 97.5 %
#> E[dY/d(infl)]    -5.75 -8.92  -2.27

We get the same results, as expected.

Comparison to other packages

Several packages offer methods for computing interpretable quantities form regression models, including emmeans, margins, modelbased, and marginaleffects. Many of the quantities computed by these packages can also be computed by clarify, the primary difference being that clarify uses simulation-based inference rather than delta method-based inference.

marginaleffects offers the most similar functionality to clarify, and clarify depends on functionality provided by marginaleffects to accommodate a wide variety of regression models. marginaleffects also offers simulation-based inference using marginaleffects::inferences() and support for arbitrary user-specified post-estimation functions using marginaleffects::hypotheses(). However, clarify and marignalefefcts differ in several ways. The largest difference is that clarify supports iterative building of more and more complex hypotheses through the transform() method, which quickly computes new quantities and transformation from the existing computed quantities, whereas marginaleffects only supports a single transformation and, as of version 0.13.0, cannot use simulation-based inference for these quantities.

Because of clarify’s focus on simulation, it provides functionality directly aimed at improving simulation-based inference, including plots to assess the normality of the distributions of simulated values (important for assessing whether Wald-type confidence intervals and p-values are valid) and support for parallel processing. clarify also provides support for simulation-based inference of multiply imputed data, which does nto require any special pooling rules and does not require normality of the estimators.

There are areas and cases where marginaleffects may be the better choice than clarify or where the differences between the packages are of smaller consequence. marginaleffects focuses on providing a complete framework for post-estimation using model predictions, whereas clarify is primarily focused on supporting user-defined functions, with commonly used estimators offered as a convenience. In cases where the delta method is an acceptable approximation (e.g., for quantities computed from linear models or other quantities known to be approximately normally distributed in finite samples), using the delta method through marginaleffects will be much faster, more accurate, and more replicable than the simulation-based inference clarify provides. For the quantities easily computed by marginaleffects and that support simulation-based inference through marginaleffects::inferences(), using marginaleffects can provide a more familiar and flexible syntax than clarify might offer.

Note that as both packages continue to develop, these differences may grow or shrink. The difference above are meant to highlight the current differences and differences in philosophy and emphasis of the two packages. Ultimately, the user should use the package that supports their desired syntax and mode of inference.

References

Imai, Kosuke, Gary King, and Olivia Lau. 2008. “Toward a Common Framework for Statistical Analysis and Development.” Journal of Computational and Graphical Statistics 17 (4): 892–913. https://doi.org/10.1198/106186008X384898.
King, Gary, Michael Tomz, and Jason Wittenberg. 2000. “Making the Most of Statistical Analyses: Improving Interpretation and Presentation.” American Journal of Political Science 44 (2): 347–61. https://doi.org/10.2307/2669316.
Rainey, Carlisle. 2017. “Transformation-Induced Bias: Unbiased Coefficients Do Not Imply Unbiased Quantities of Interest.” Political Analysis 25 (3): 402–9. https://doi.org/10.1017/pan.2017.11.
———. 2023. “A Careful Consideration of CLARIFY: Simulation-Induced Bias in Point Estimates of Quantities of Interest.” Political Science Research and Methods, April, 1–10. https://doi.org/10.1017/psrm.2023.8.
Tomz, Michael, Jason Wittenberg, and Gary King. 2003. “Clarify: Software for Interpreting and Presenting Statistical Results.” Journal of Statistical Software 8 (January): 1–30. https://doi.org/10.18637/jss.v008.i01.
Zhou, Xiang, and Jerome P. Reiter. 2010. “A Note on Bayesian Inference After Multiple Imputation.” The American Statistician 64 (2): 159–63. https://doi.org/10.1198/tast.2010.09109.
